High Security UHF RFID Cable Seals - Anti Tamper, HF NFC Self-Locking Truck Seals for Transport & Logistics, Numbered Metal Security Tags for Trail Shipping (UHF RFID Seal - Green, 20pcs)

How RFID Electronic Seal Work  Departure:  Lock the vehicle’s doors with the RFID Electronic Seal. Use the handheld to write the corresponding license plate number, item name, destination address and operator information, and then upload the corresponding information to the management system back-end server. Prepare to download this information from your handheld. Unpack the RFID handset to take pictures, while recording the time GPS location information, and upload the management system through 3G.    Arrival:  Each RFID Electronical Seal has a unique number and can store the delivery time, delivery location, shipper carrier destination and other related encrypted information, after goods arrives at the destination, the special RFID reader reads the cargo tranportation information stored in the chip, takes photo of seal appearnace, automatically record unpacking time and location. The system automatically checks whether the relevant records match, and whether the photographing time and unpacking time are within a reasonable range.If there is an abnormality, it can be fed back to the monitoring center through the abnormal information. That effectively judges whether there is a tampering/theft in the transportation process.  Technical Data:  Working Frequency: 13.56MHz/915MHZ  Chip: NXP Ntag 213/ Impinj MR6-P or Customized  Chip protocol: ISO14443A / ISO18000-6C  Memory: 1024Bit  Size: 36 * 26* 12.5mm  Length: 280mm  Cable Diameter: Regular 1.8mm or Customized  Tensible Force: more than 3000N  Reading Distance: 0-400mm (Depend on the type of RFID Reader)  Working Temperature: -40℃~100℃ Installation Method: Pull tight by hand,locking range is adjustable  Application: use in Posting Parcel, Container, Tanker, Aircraft, Bank, Customs and so on  Printing: Serial number, Letter, Logo, Bar code, and simple image are available by laser printing or Hot Stamping

• This one is UHF type,Chip type: RFID MR6P,Working frequency: 860MHz ~ 960MHz,Communication protocol: ISO18000 - 6C, it requires a handheld device
• Compact & Adjustable Design Measuring 1.42 x 1.3 x 0.5 in (36 x 33.5 x 12.5mm) with a wire diameter of φ0.07 in (1.8mm) and length of 11.8 in (300mm), each seal is self-locking and adjustable. Laser-printed unique serial numbers ensure permanent identification that never fades.
• Advanced UHF RFID Technology Equipped with a contactless UHF RFID chip, this seal provides real-time data and tamper-proof security. Once breached, the chip is destroyed, making replication impossible. Offers superior protection compared to traditional seals.
• Easy to Use & Highly Efficient Simply use a handheld device to write data to the RFID chip. The seals can be quickly and accurately read by fixed gateway systems or handheld readers, ensuring seamless integration into your logistics operations.
• Versatile Applications Ideal for securing trucks, containers, trailers, and more, these RFID metal cable seals are a reliable solution for shipping and logistics. Perfect for enhancing cargo security and tamper evidence across various industries.

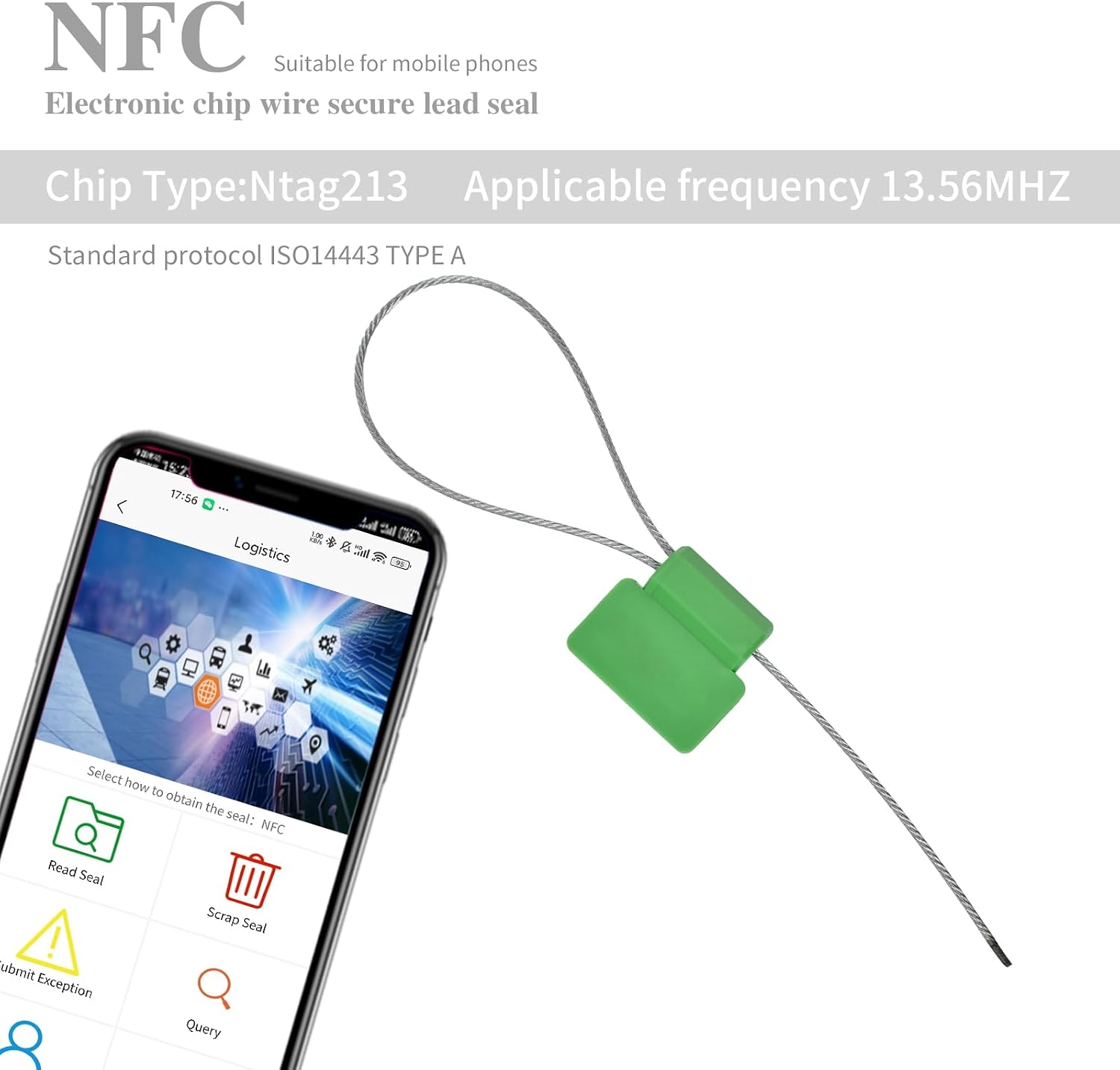

• For HF Style ,it needs your phone or Handheld Reader support NFC Function, For UHF Style,it could only read or write by Handheld Reader support Ultra-high frequency
